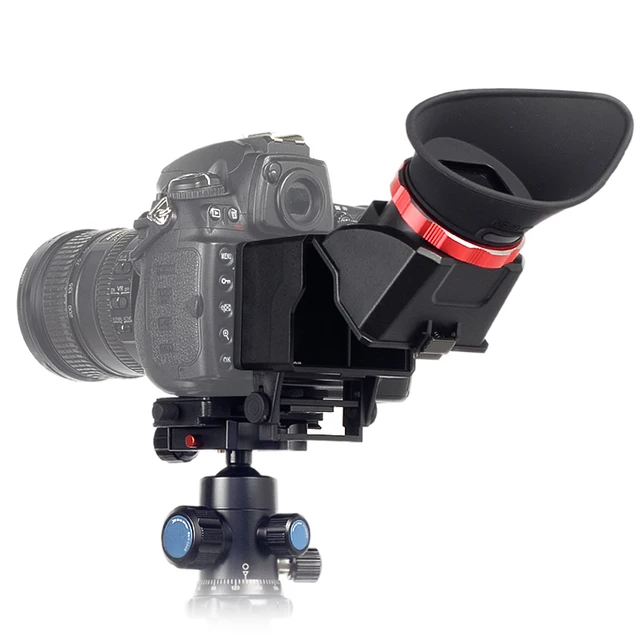

GGS SWIVI viewfinder provides an extremely clear, magnified view to achieve more accurate focus, color and
exposure, especially when shooting video in bright daylight conditions.
This Swivi S6 foldable viewfinder features two framing modes: 3X Magnification and Standard mode.
Magnification mode provides a 3.0x magnified view on the LCD. Simply flip up the eyepiece to use as a
sunshade hood.
The viewfinder can fit for most digital cameras with 3″-3.2″ LCDs and 4:3-3:2 ratio. It attaches to the camera
through a detachable mounting plate (Included). It also includes an adjustable rubber eye cup for user
preference and comfort, and a lanyard is supplied so the viewfinder can be carried easily when not attached
to the camera.
Features:
-3X Optical Magnification
3 times magnification mode for extremely clear framing and magnifying view, can observe details more clearly,
manual focus more accurately.
-Used as Normal Sunshade Hood
When not in use, the entire viewfinder can be used as a normal sunshade or detached completely using the
quick release baseplate system.
-With ±3 Diopter Adjustment Function
Using high-quality glass optics with a build-in diopter to adjust screen focus for those with less than perfect
vision, meet the actual needs of users.
-Adjustable Frame fits different camera bodies
With its extensive forward and back, horizontal and vertical adjustments the LCD viewfinder has been
designed to fit a variety of cameras.
-Rotatable eye-cup can fit different eyes
The adjustable eye-cup is made of soft rubber, it can be changed to different directions for different eyes,
comfortable and provide better user preference, it can fit tightly to your eyes, well sealed and no light leak.
-Quick and easy to install
The LCD viewfinder attached to your camera through a solid metal quick-release plate. The mounting plate can be used on Arca Swiss directly, and with 3/4″ standard screw hole
available for other equipments.
-Compatible with most digital cameras with 3″-3.2″ LCDs and 4:3-3:2 ratio, but not suits for cameras with
handle grip.
Note: The size of S6 viewfinder frame is larger than 3″ LCD screens, so it may cause some inconvenience
when you use the camera buttons near the LCD, please take it into consideration if you want to use 3″ LCD
cameras with the S6!
Installation:
1. Attach the mounting plate to the tripod mount under the camera.
2. Then separate the frame from the viewfinder and reverse it.
3. Loosen the screws on the frame and plate side and insert the viewfinder frame into the plate.
4. Adjust the frame front/rear vertical and horizontal to fit your cameras LCD (use the extension frame for
battery grips).
5. Tighten the screws on the frame and plate, make sure the viewfinder doesn’t move.
6. To remove the viewfinder simply loosen the screw on the plate side.
Specifications:
Lens: 3piece/group
Magnification: 3X
Diopter: ≤3
Transmittance: >90%
Lens Aperture: 40mm
Support: 3″/ 3.2″ LCD 4:3/3:2 ratio
Mode: Magnification/ Sunshade
Screen Size: 66mm x 50mm
