important!
Please note that closing the camera battery door is a necessary step in using the AC adapter kit.
With a little clearance through the battery holder, open the gap rubber, let the power cord pass through the gap, and then close the battery door, then you can connect the machine’s power and power.

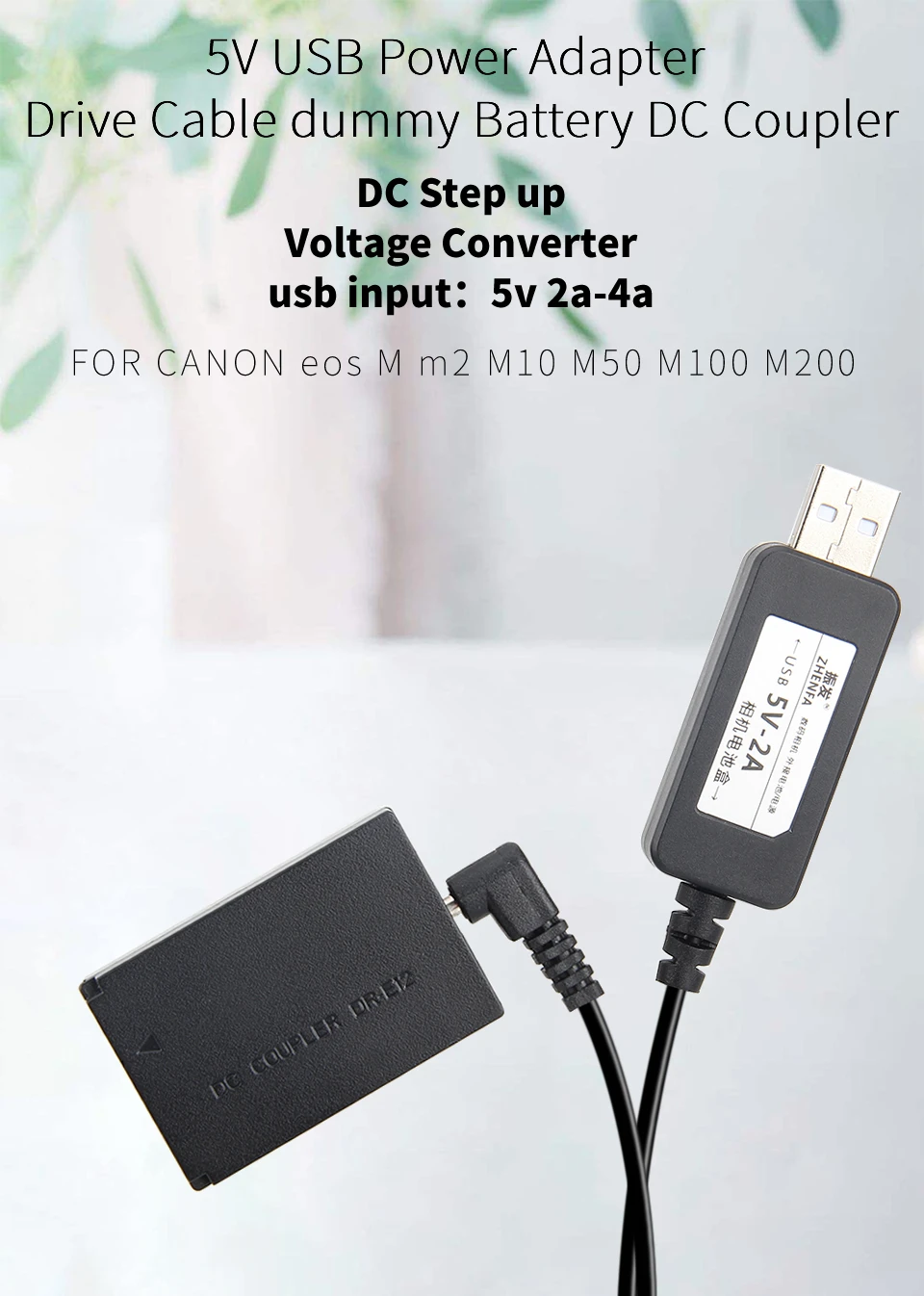

When a digital camera does a lot of work, or wants to extend the life of your LP-E12 battery far beyond, especially when you don’t have a power outlet outdoors, use our USB cable adapter kit. This DC function adapter kit works with a DC5V power boost 8V. The 5V 2A-4A mobile power supply is now very popular and easy to access. With the right mobile line portability, it can provide sufficient power for digital cameras for a long time. At this time, an ideal high-quality and low-cost solution, DC-adapter kit ACK-E12 and replace LP-E12 battery
Precaution:
1. In order to optimize your camera’s work, use high-quality mobile power, mobile power needs to output 5 volts 2A / 4A current. When the power or current is insufficient, you can’t shoot. Please choose at least better current.
2. The mobile power has an automatic sleep mode and is turned off.
3. Do not use computer USB, because the computer USB 2.0 output voltage is mostly 5v, but the current is less than 500mA current.
4. Some mobile phone/tablet USB charger and resistance recognizer, do not know the camera, the current can not meet the requirements, so it is not recommended.
5. Use the camera for a long time to set the camera standby time to the maximum standby time.
Features:
Input: 5 V-2A-4A
Output: 8.4V
USB plug specification: USB2. 0
Length: > 150 cm
Accessories: 1 USB cable, 1 DR-E12 battery case
This USB DR-E12 coupler is suitable for the following Canon digital cameras:
EOS M2
EOS M10
EOS M50
EOS M100
EOS M200
