Application
HDMI Support Format (FW74K)
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98) |
General
| Input Voltage | DC6.5~35V |
| Power Consumption | ≤5W |
| Power Connector | DC |
| Battery Plate | F970 (Standard); D28S, LP-E6，U60 (Optional) |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | 1/4″-20 Thread Socket (1 bottom side) |

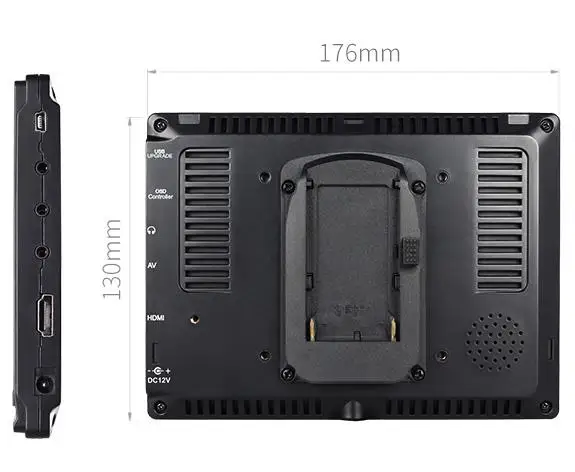

| Unit Size | 176L×130H×17D (mm) |
| Unit Weight | 300g |
Advanced Features
| * Peaking Focus Assist (Red highlight over parts of the monochrome image in focus) |
| * Check Field (Red,Green,Blue,Mono) |
| * Camera Mode |
| * Pixel to Pixel (FW74K nonsupport in 4K input) |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Zoom All |
| * U/D & L/R Zoom |
| * Custom Color Temperature |
High-definition to fuel your creative flow

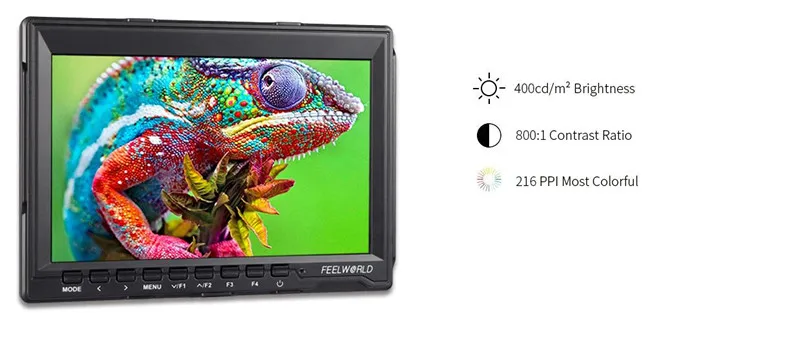

Richer, Brighter, Most Colorful

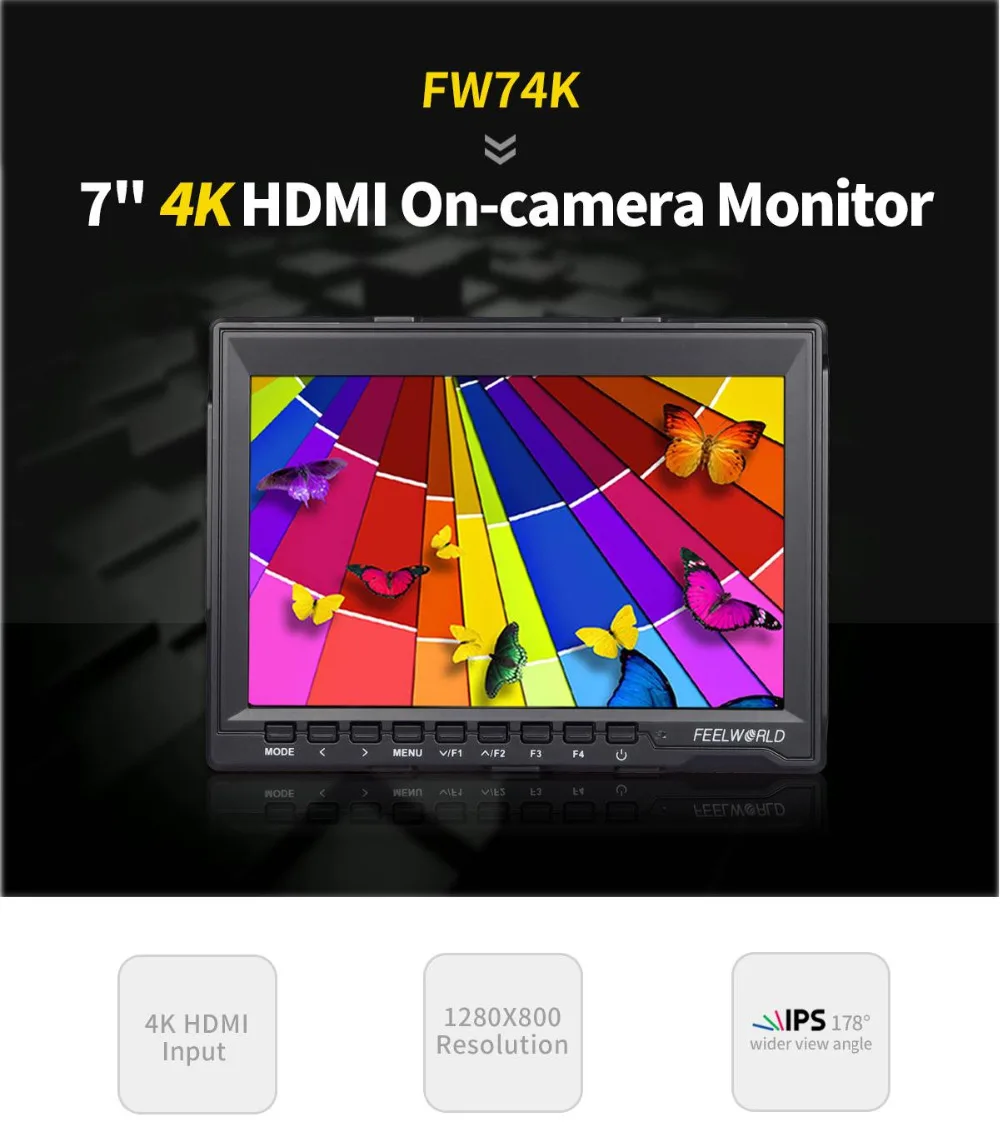

With the FW74K’s 7-inch 1280 X 800 IPS HD panel what you see is truly what you get! The IPS HD Panel delivers near perfect viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The FW74K’s IPS HD Panel is the tool of choice for high quality color reproduction.
Near Perfect image viewing at every angle
Wide color gamut LCD panel and 1280×800 resolution ensure the monitor more precise color restoration exquisite picture quality and more rich color.
Ultra-thin Lightweight Design

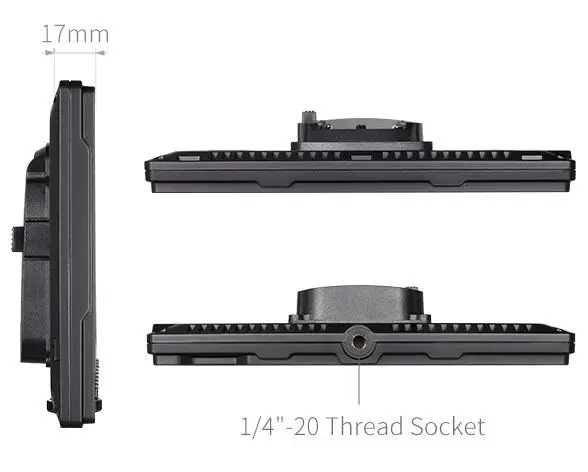

Specially designed to merge portability,and functionality, 17mm thickness 300g the FW74K gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

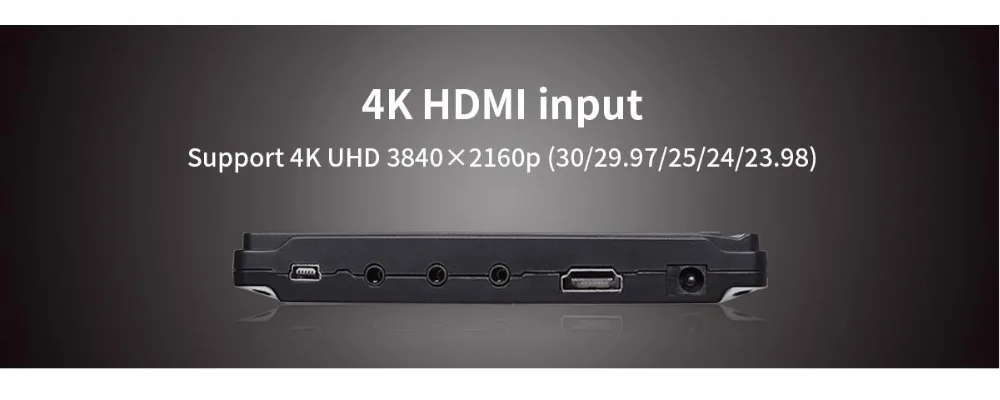

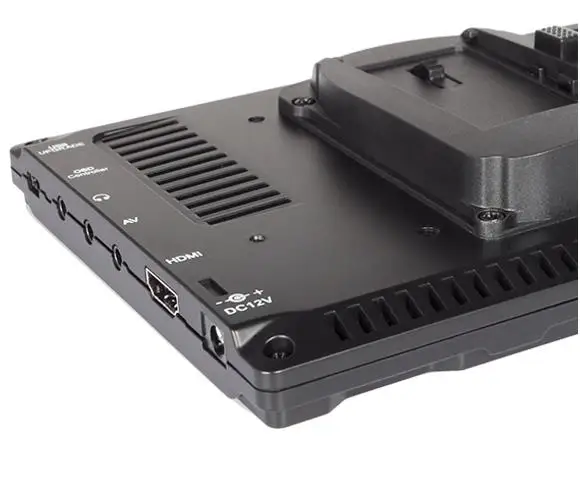

- Multiple Interfaces
Support most DSLRs and camcorders.
Input:
HDMI X 1
AV X 1
OSD Controller X 1
USB Upgrade X 1Output:
3.5mm Ear Phone Slot X 1
Built-in Speaker X 1
Slim Design 17mm 7 inch Field Monitor

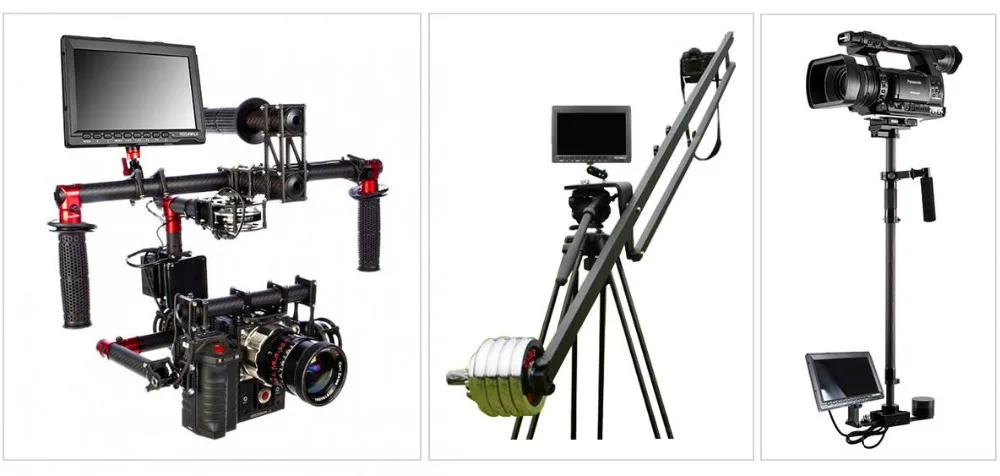

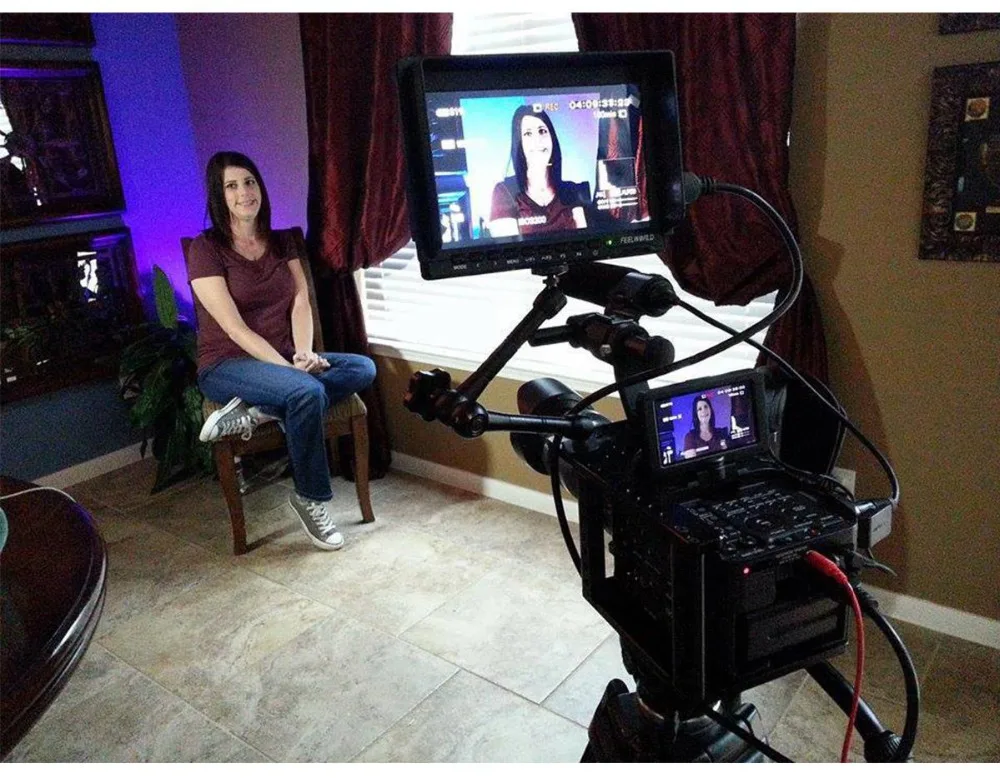

Portable Light Compatible for Steadycam, DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane.
Specially Designed HDMI Lock
In order to avoid affecting the shooting from bad connection while use HDMI format for HD signal transmission (actually this problem happens frequently), therefore, we specially designed HDMI lock to ensure the safety of signal transmission.

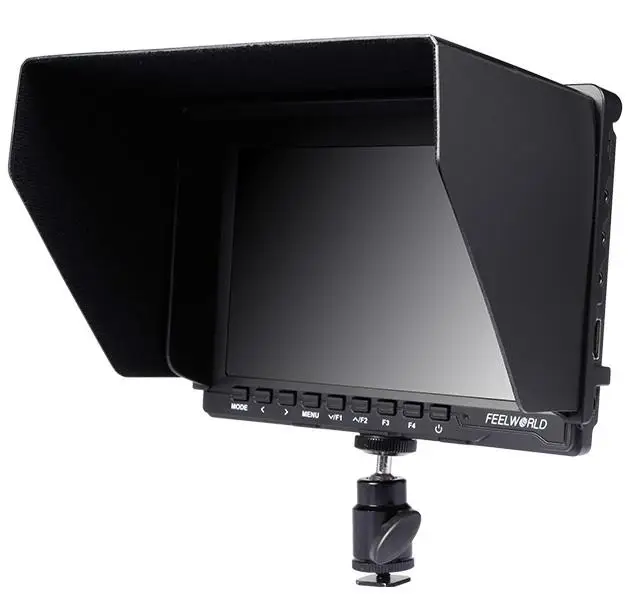

Collapsable Sunshade
Portable and easier viewing in bright environments.

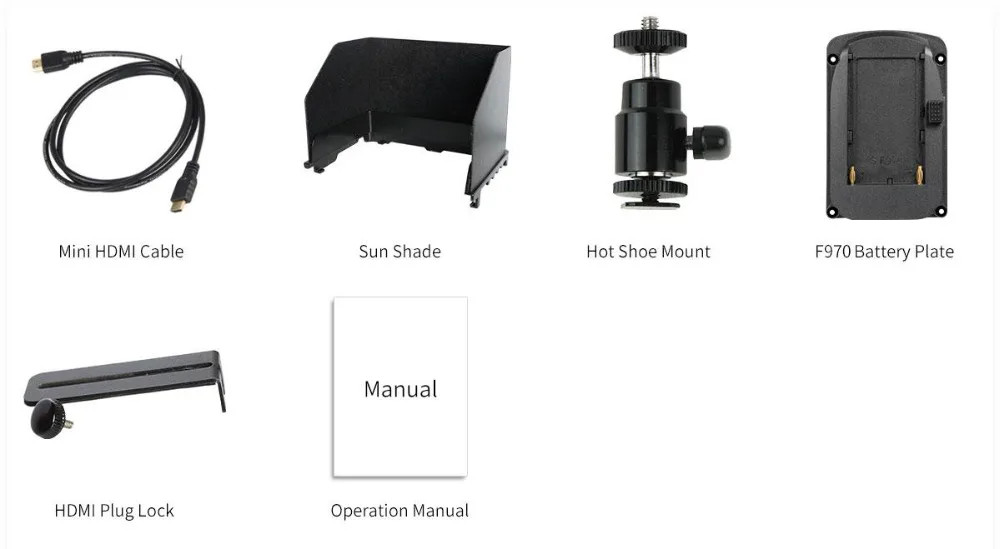

Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battey Plate
1× HDMI Plug Lock
1× Operation Manual
