SPECIFICATIONS
Display Spec.
Model S55
Screen Size 5.5″ IPS
Resolution 1280×720 pixels
Pixel Pitch 0.0945(H) x 0.0315(W) mm
Aspect Ratio 16:9
Brightness 500cd/m²
Contrast Ratio 1000:1
Backlight LED
Viewing Angle 80°/80°(L/R) 80°/80°(U/D)
Input&Output
Input:
1 X HDMI HDMI
Output:
1 X HDMI HDMI
1 X DC Output DC Output
Audio:
Audio Stereo Headphone
HDMI Input/ Output Support Format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
Input Voltage DC7～24V
Power Consumption ≤9W
Power Connector DC
Working Temperature -20°C~55°C
Storage Temperature -30°C~65°C
Install Way ¼-20 thread points
Unit Size 142Lx87.2Hx27.5D (mm)
Unit Weight 175g

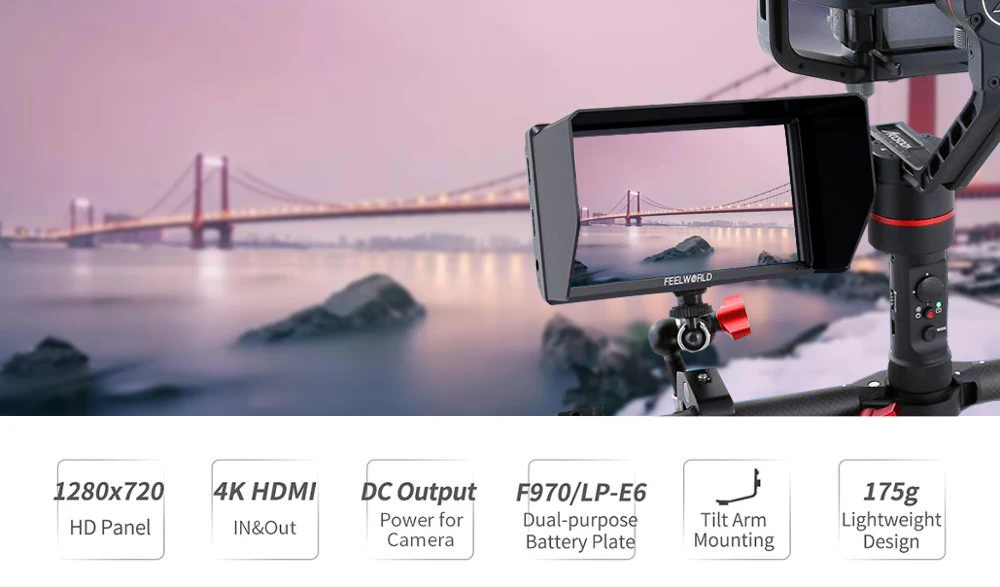

FEELWORLD S55 5.5 inch 4K On-camera Monitor with HDMI
The S55 is a mini but mighty 5.5″ monitor packed full of features that are the perfect complement to a DSLR rig. To assist you during your productions, the S55 has a lot of standard software features such as false color and histogram to get the perfect exposure, peaking for focus assist, embedded audio, pixel to pixel, frame guides, and much more!

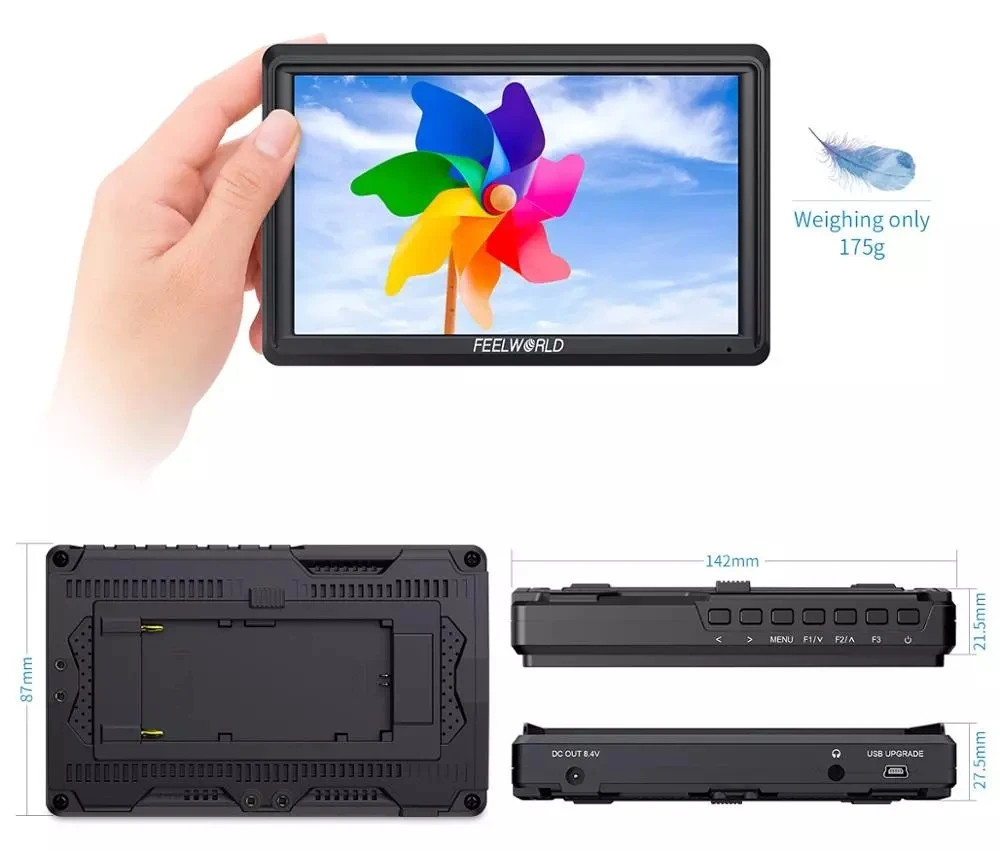

Small and Lightweight
175g light-weight design: Makes great convenient for cameraman in outdoor or handheld applications. The S55 on-camera monitor’s small size makes it ideal for gimbals and lightweight camera systems especially those without a built-in display

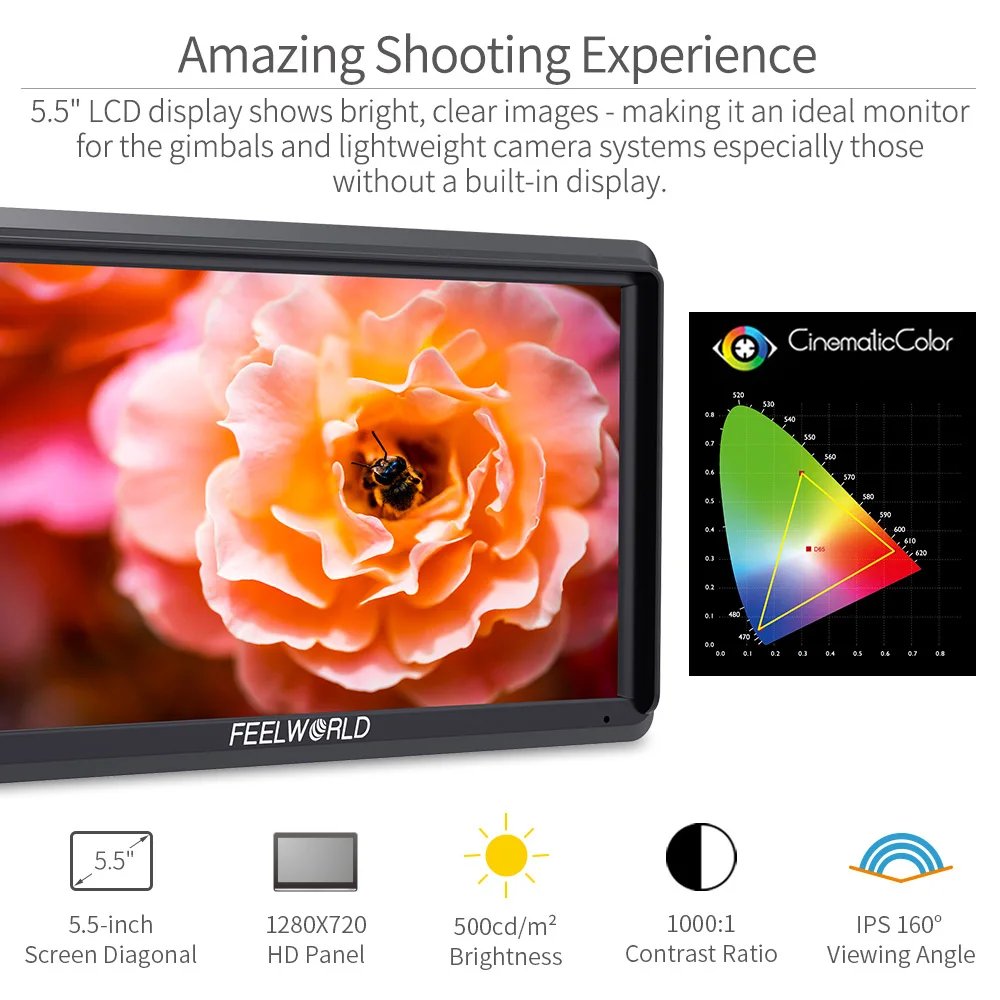

5.5″ Monitor with Widescreen
FEELWORLD S55 is a lightweight 5.5″ monitor at a 16:9 aspect ratio. The high resolution 5.5″ LCD display shows bright, clear images – making it an ideal monitor for the discerning DSLR user. The S55 features a panel with native 1280 x 720 resolution, 500cd/m2 brightness, 1000:1 contrast ratio, which facilitates the onscreen image to be a more vibrant, more accurate rendition of what the camera sensor sees.

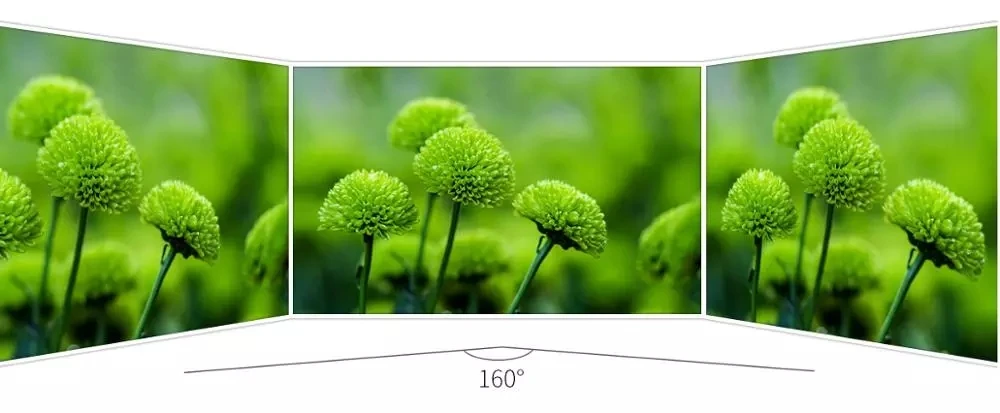

Different Angles, The Same Beautiful Picture
IPS monitor, gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And he wide viewing angle makes it easy for multiple crew members to watch at the same time.

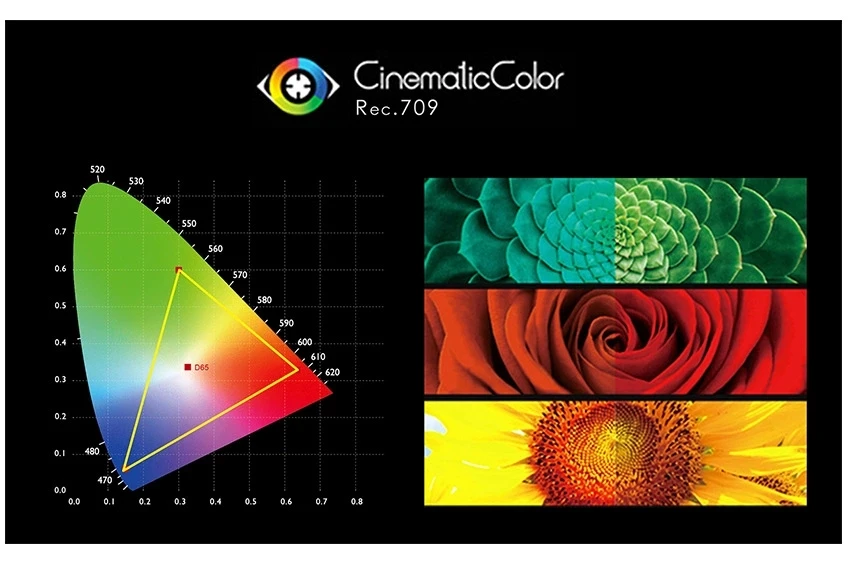

True Color · Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
dslr-hdmi-monitor
Intuitive Controls and Menus
The menu controls are intuitive and easy to use. At the top of the monitor, there are three custom function buttons that you can set as common functions; press “” directly to increase the volume. The monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

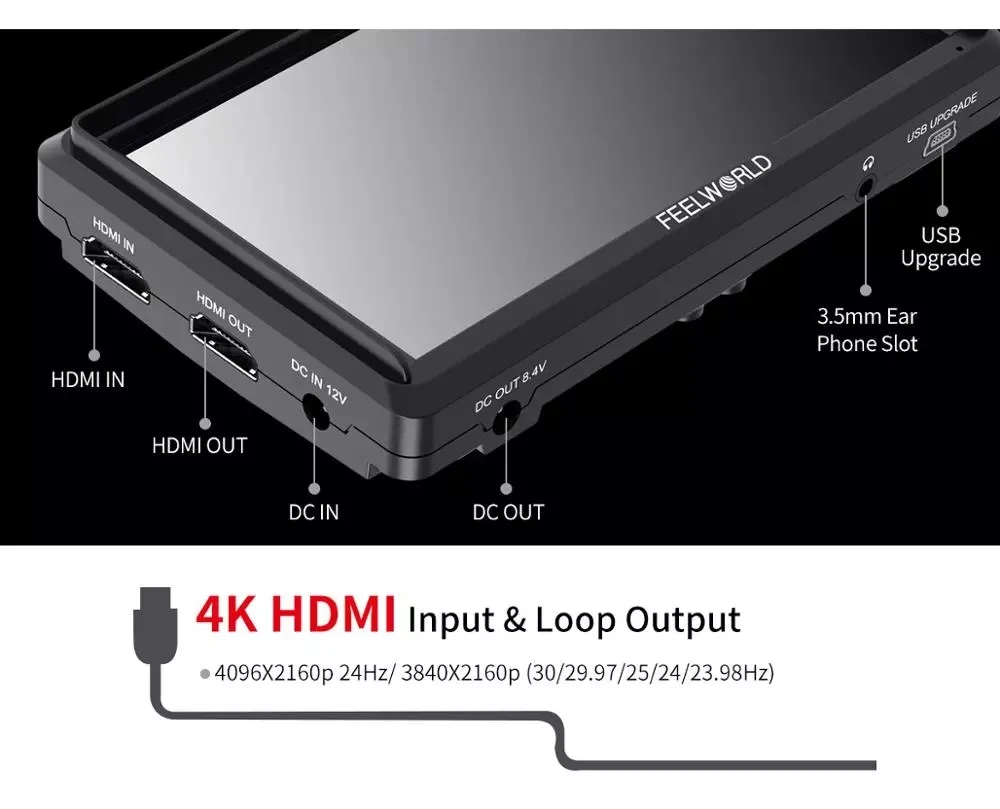

4K HDMI Input & Loop Output
The S55 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It’s the ability to display live picture on multiple displays at once while still maintaining the original video quality.
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
HDMI Output Application
Connect to Wireless Transmitter
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
Connect to Director Monitor
Display live picture on multiple displays simultaneously.

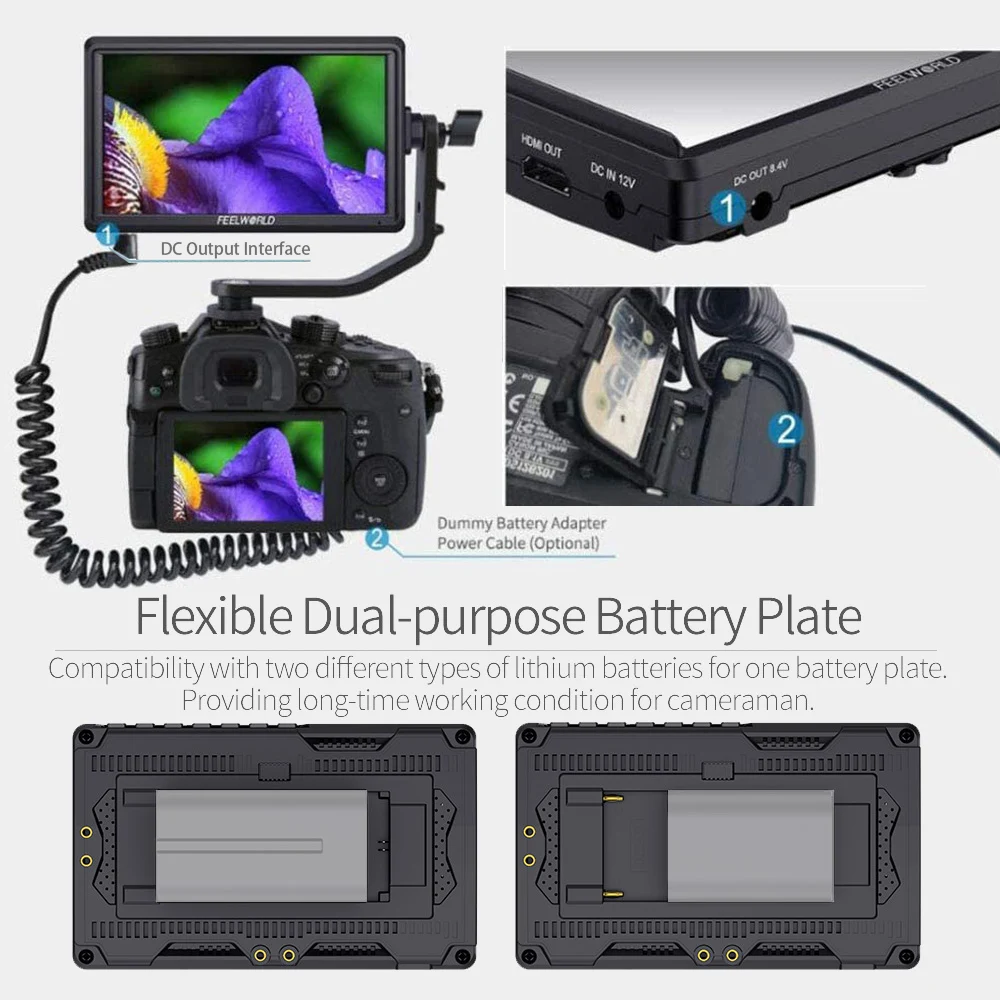

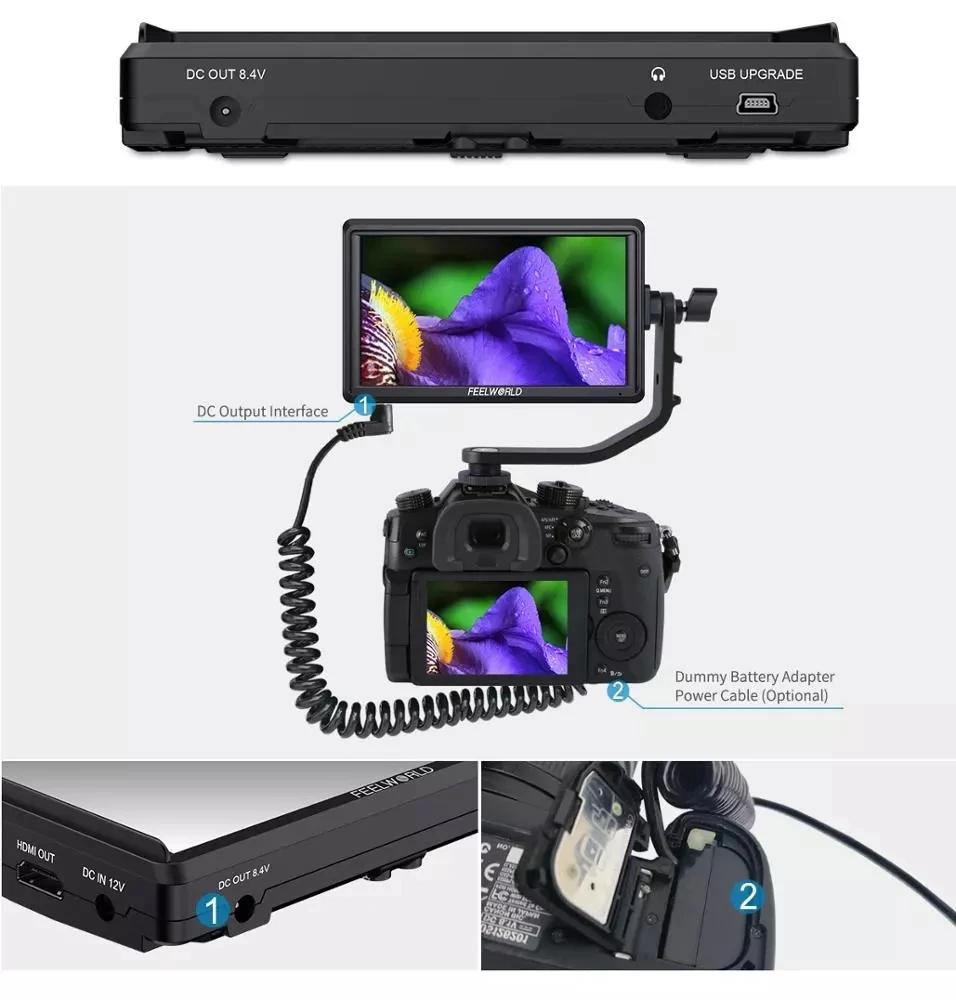

Auxiliary Power
Real-time power charge for cameras
A DC output port enables you to power your camera directly from an NP-F L-series or LP-E6 battery mounted on the monitor, increasing runtimes over the standard batteries of many DSLR or mirrorless cameras. In addition, you can monitor audio using the 3.5mm stereo headphone jack.

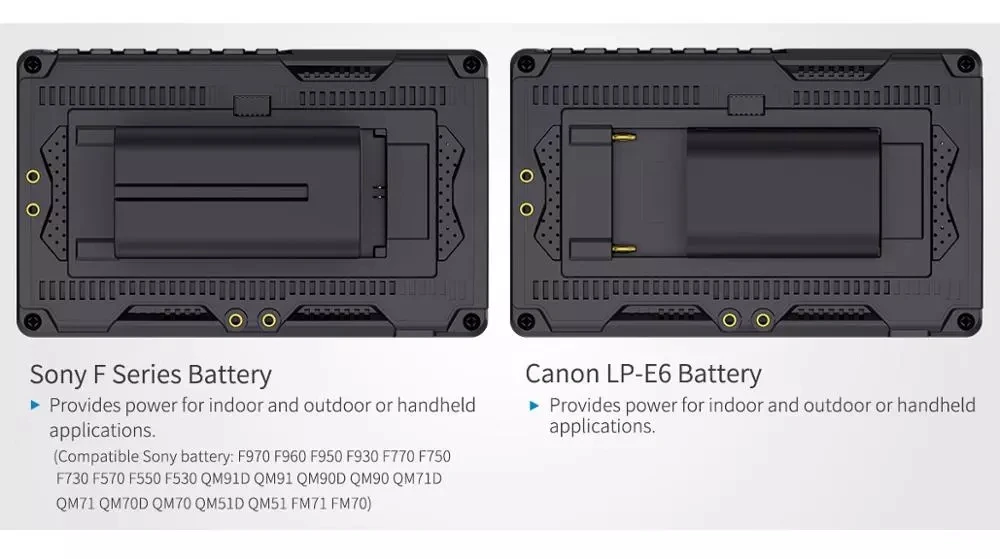

Flexible Dual-purpose Battery Plate
Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing long-time working condition for cameraman in shooting applications.

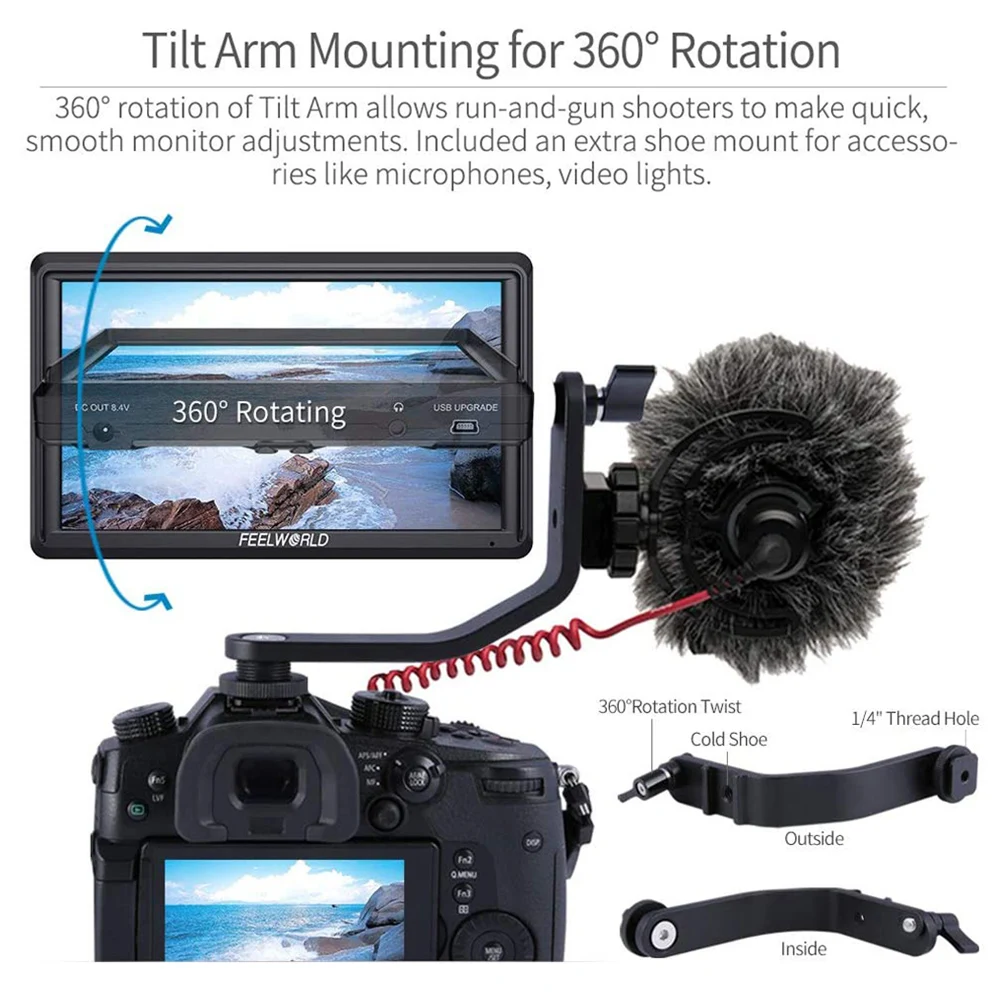

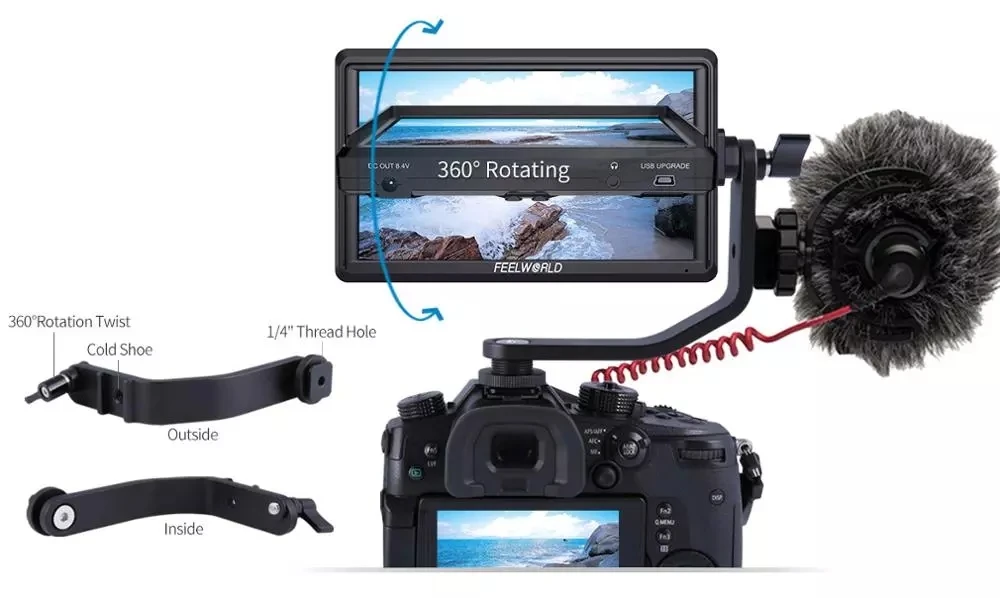

Convenient Mounting – Tilt Arm
Every S55 monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the S55 monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4″-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

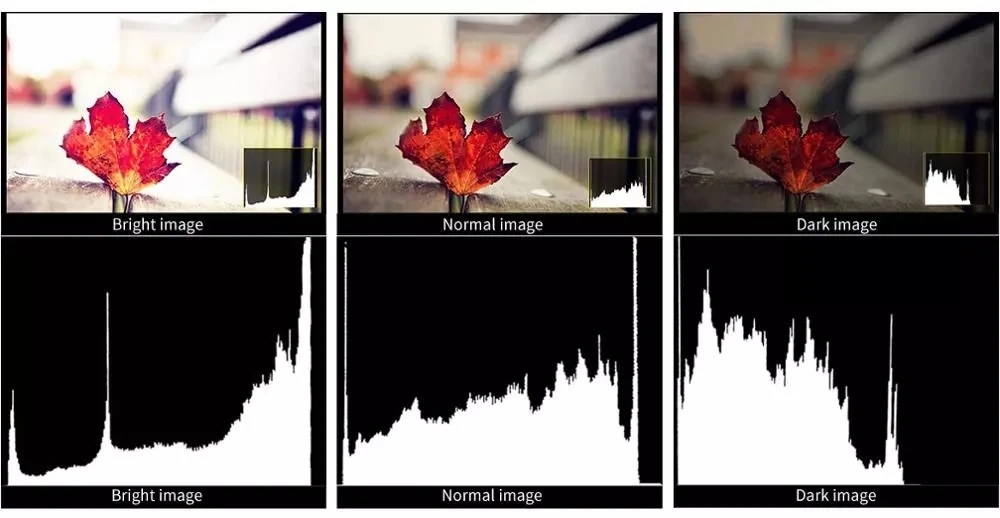

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

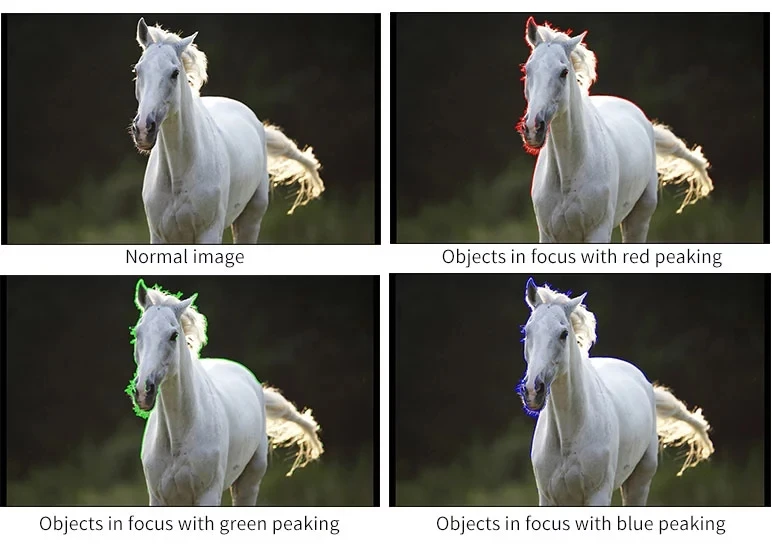

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

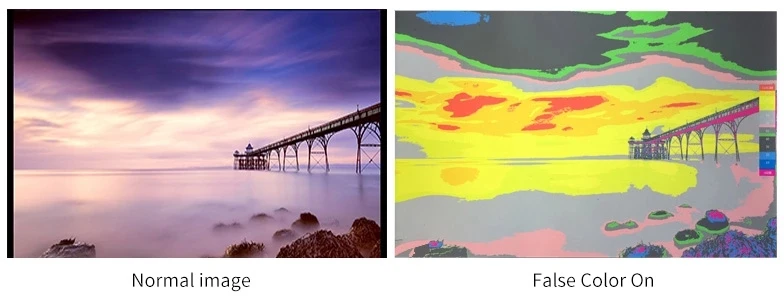

False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

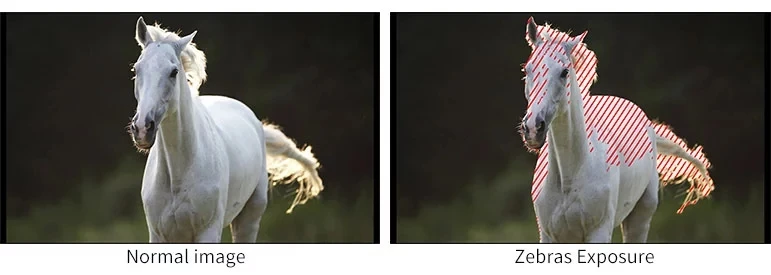

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.
FEATURES
1. High Resolution: HD 1280×720
2. High Contrast: 1000:1
3. High Brightness: 500cd/m²
4. 160° wide viewing angles IPS Panel
5. Provides auxiliary power out; allowing shooters to power their cameras
6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Scan Mode (Under Scan, Over Scan)
12. Zoom (4x,9x,16x)
13. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
14. Pixel to Pixel
15. Center Marker
16. Safe Area (80%,85%,90%,93%,96%,2.35:1)
17. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
18. Marker Color (Red,Green,Blue,White,Black）

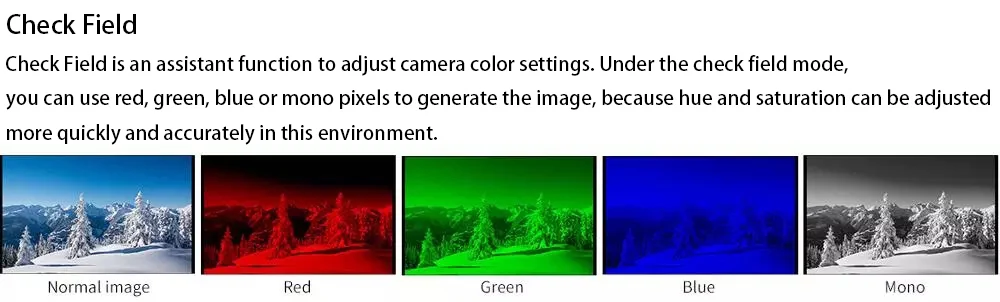

19. Check Field (Red/Green/Blue/Mono)
20. Image Flip (H, V, H/V)
21. Image Freeze
22. Zoom All (0~100 adjustable)
23. U/D & L/R Zoom (0~100 adjustable)
24. Color Temperature Adjustment
