DUAL RECEIVING
MINI CAR WALKIE TALKIE
25W DUAL BAND UHF/VHF
Dual display, dual standby & Dual Track Frequency adjusting Working mode selecting Scrambling encryption function Voice companding function Frequency/Channel scan function Reverse frequency setting Busy channel lock-out (BCL) Time-out timer (TOT) High/low power selectable CTCSS/DCS encoding and decoding Broadband (Wide)/Narrow band (Narrow) selectable Frequency Step Selectable 2.5/5/6.25/10/12.5/25/50KHz Level Threshold “Squelch” adjustable from 0 to 9 Tri-color background light selectable PC software programmable FM radio function Operation for manual channel memory and delete Automatic lock-out DTMF signal setting DTMF signal PTT ID Setting Remote control function Remote monitoring Remote stun Remote killaking Remote reliving Alarm function Group calling function Team calling function Selected calling function Function key guide voice(BEEP) SFT/Slip frequency direction OFFSET/Slip frequency 1000Hz/1450Hz/1750Hz/2100Hz selecting |

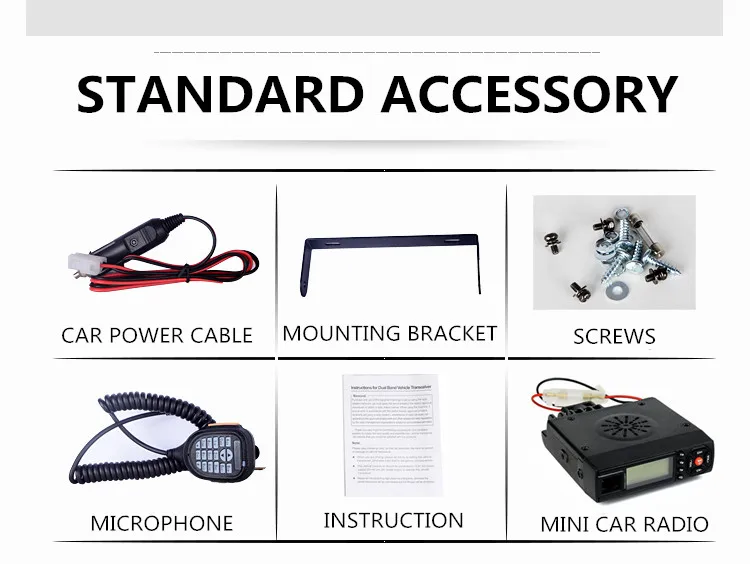

Standard Package:
All of our item are brand News | ||
Model | BJ-218 | |
Color | Black | |
Frequency Range | UHF:400-470MHz&VHF:136-174MHz | |
System | F3E(FM) | |
Channel capacity | Totally 256 (VHF:128Channels/UHF:128Channels) | |
Input voltage | DC13.8V(±15%), negative grounding | |
Output power | H:25W, M:10W, L:5W | |
Channel Spacing | 12.5KHz/25KHz | |
Frequency Spacing | 2.5/5/6.25/10/12.5/15/25/50KHz | |
Squelch way | CTCSS/DCS/DTMF | |
Antenna impedance | 50 ohm | |
Frequency stability | ±2.5ppm @ -10°C~+60°C | |
Working temperature | -20°C~+60°C(-4°F~+140°F) | |
Max. Frequency deviation | ±5KHz | |
Noise radiation | <=-60dB | |
Flexibility | <=0.2Uv(12dB SINAD) | |
Max. Audio output | 2W @ 8 ohm 5% distortion | |
Working current | Receive | 0.3A(SQL) |
Transmit | 5A(Max.) | |
Dimension | 105x30x106mm(WxHxD not including the outparts) | |
Weight | About 0.5kg | |
